Beschrijving

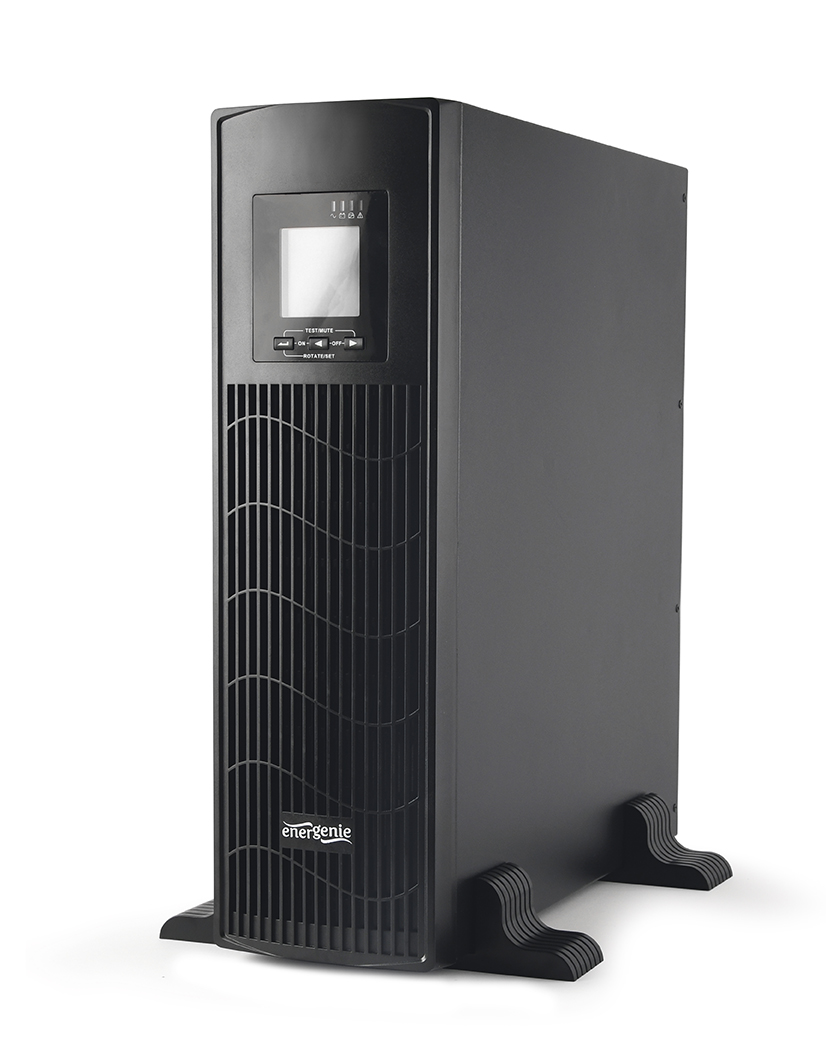

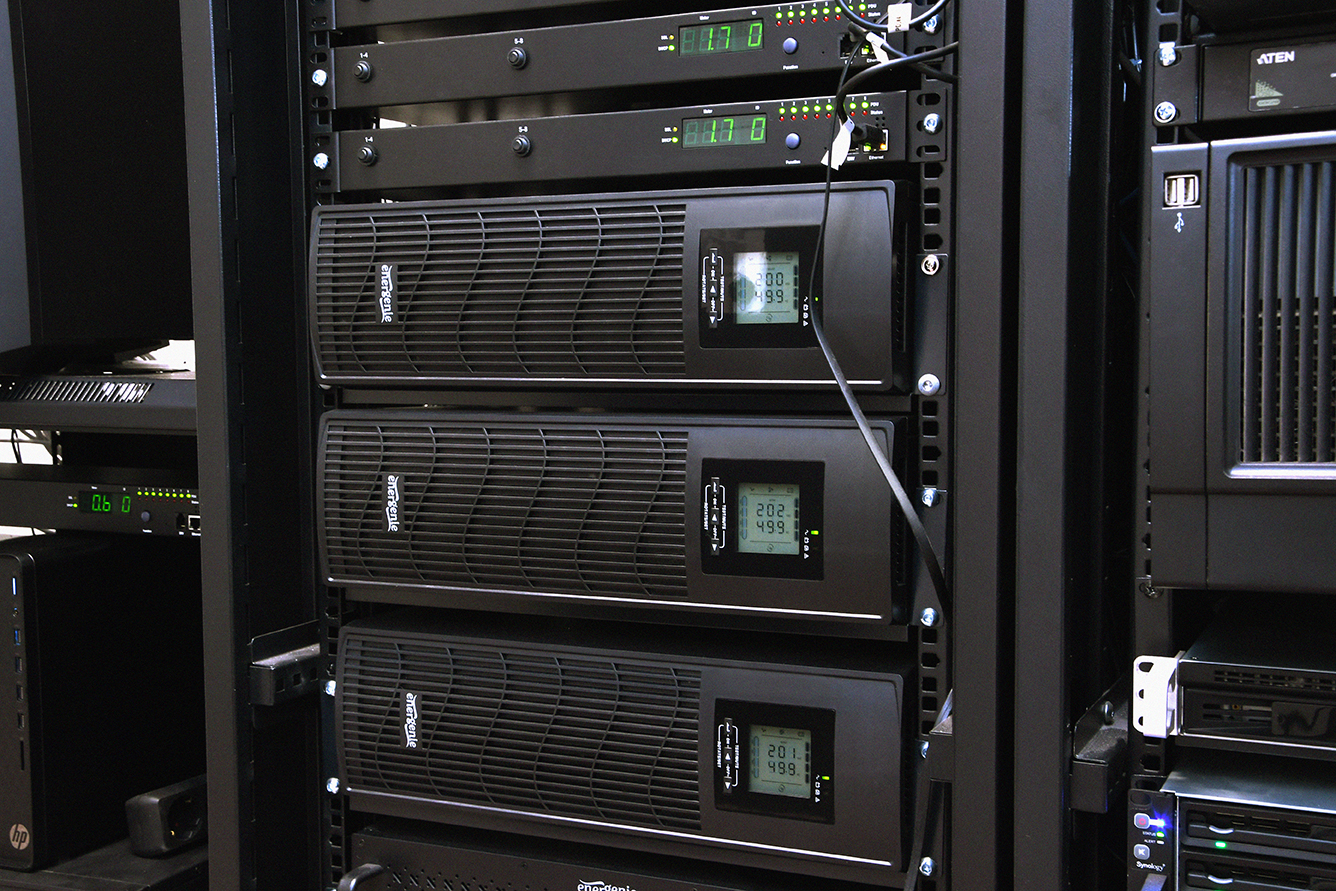

Neemt u het risico dat u uw beveiligingssysteem niet meer werkt als de stroomvoorziening het laat afweten? Bang voor dataverlies als de stroom uitvalt? Met deze UPS houdt u tijdelijk stroom in uw serverkast.
Kenmerken
Automatische output voltage regulatie (AVR)
USB interface
LCD status indicatie
Hoor- en zichtbaar alarm
Bescherming tegen kortsluiting alsook blikseminslag
Bescherming tegen stroompieken en -schommelingen
Bescherming tegen overbelasting en -ontlading

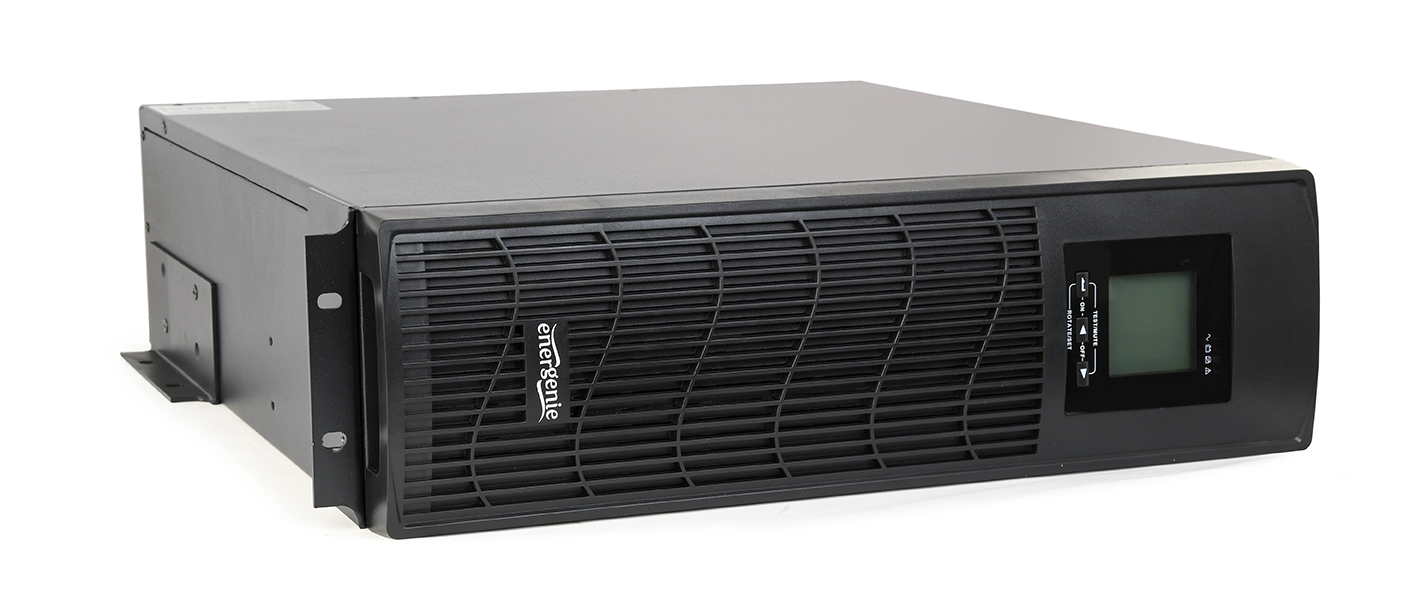

Afmetingen product: 475 mm (breed = 19 inch) x 132 mm (hoog) x 360 mm (diep)
Specificaties
UPS type: line interactive, pure sine wave
Input: 220V AC ± 25%, 50Hz / 60Hz ± 10%
Output: 220V AC ± 10%, 50Hz / 60Hz ± 0.5% (on battery)
Output power factor: 0.8
Inverter output efficiency (resistive load): 85%, any load type is allowed
Switching time: no more than 10 ms (typically 6 ms)
Backup time: 8…20 mins (depends on the load)
Battery: 151 x 65 x 95 mm, sealed lead-acid 12 V / 9 Ah / 2.3 kg x 3 pcs
Charge time: up to 12 hours

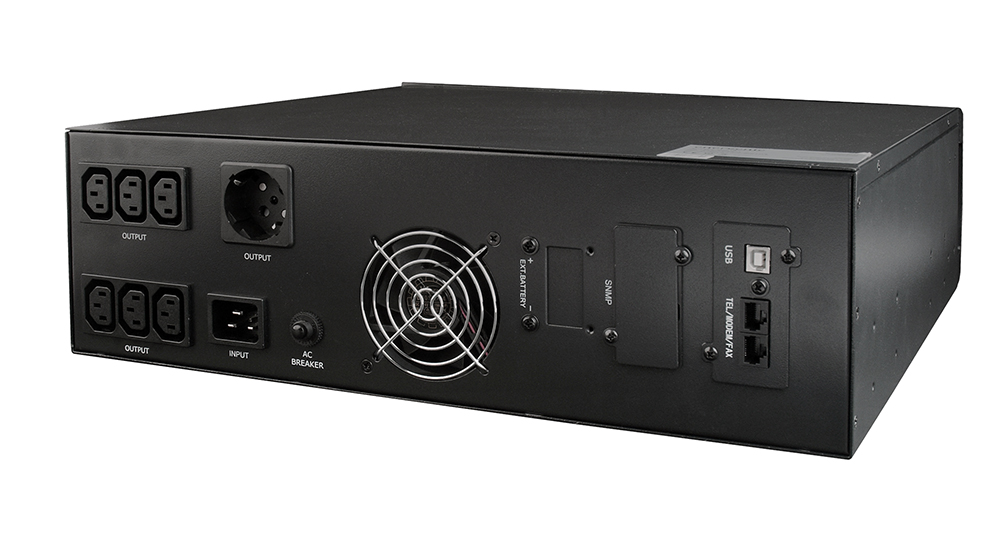

Sockets: input IEC C14, outputs: Schuko EU type x 1 pc, IEC C13 x 6 pcs
Operating conditions: 0°C~40°C, at humidity 10~90%RH non condensing
Noise: < 45 dB (at 1 meter distance)
Power: 2000 VA (1600 W)
Dimensions: 440 x 410 x 132 mm
Product weight: 19.8 kg
‘Cold-start’ function
Systeemeisen
In order to work correclty, the connected load should be at least 5% of the maximum capacity of the UPS. For example, a 700 W UPS needs at least a connected load of 35 W to work.
Inhoud
UPS
Power cord
USB cable
Software CD
Spare fuse
