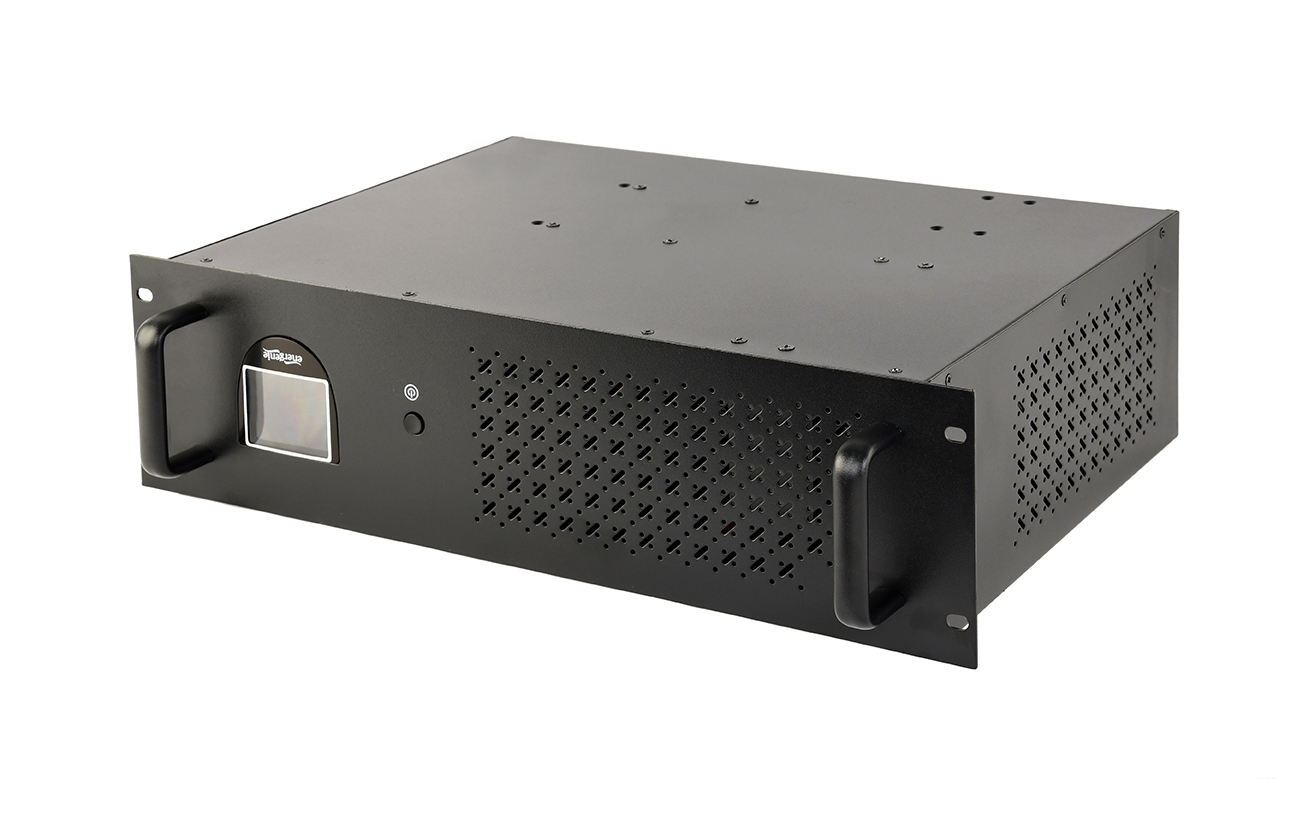

Noodstroomvoeding (UPS) voor server rack 2000VA

Beschrijving

Optimale bescherming voor het nooit meer verliezen van je data na stroomuitval en het beschermt ook nog eens je kostbare apparatuur!

Kenmerken

Automatische output voltage regulatie (AVR)
USB interface
LCD status indicatie
Hoor- en zichtbaar alarm
Bescherming tegen kortsluiting alsook blikseminslag
Bescherming tegen stroompieken en -schommelingen
Bescherming tegen overbelasting en -ontlading
Afmetingen product: 475 mm (breed = 19 inch) x 132 mm (hoog) x 308 mm (diep)

Specificaties

UPS type: line interactive
Input: 220V AC ± 25%, 50Hz / 60Hz ± 10%
Output: 220V AC ± 10%, 50Hz / 60Hz ± 0.5% (on battery)
Switching time: no more than 10 ms (typically 6 ms)
Backup time: 8…20 mins (depends on the load)
Battery: 151 x 65 x 95 mm, sealed lead-acid 12 V / 9 Ah / 2.5 kg x 2 pcs
Charge time: up to 12 hours
Sockets: IEC13 output x 2 pcs, german Shuko ? 2 pcs; input IEC14, USB-BF control interface, telephone inputoutput
Operating conditions: 0°C~40°C, at humidity 10~90%RH non condensing
Noise: < 45 dB (at 1 meter distance)
Power: 2000 VA (1200 W)
Dimensions: 480 x 150 x 350 mm
Product weight: 16.5 kg
‘Cold-start’ function

Systeemeisen

In order to work correclty, the connected load should be at least 5% of the maximum capacity of the UPS. For example, a 700 W UPS needs at least a connected load of 35 W to work.

Inhoud

UPS
Power cord
USB cable
Software CD
Spare fuse
